Venus Type Elements

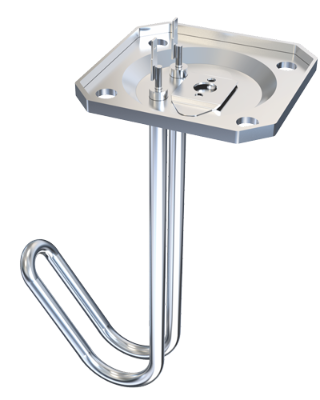

Square Cup Wave Bend Element

Item Code : N-131

Flange/Cup Details : 90mm X 90mm Square Cup

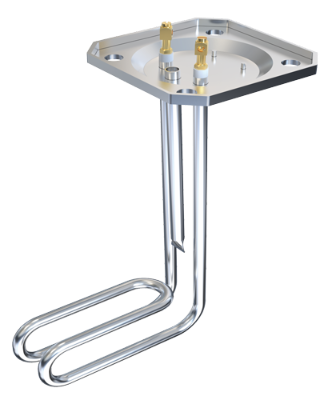

Venus Type Element

Item Code : N-132

Flange/Cup Details : 90mm X 90mm Square Cup
Venus Type Element

Item Code : N-133

Flange/Cup Details : 90mm X 90mm Square Cup
Venus Type Element

Item Code : N-134

Flange/Cup Details : 90mm X 90mm Square Cup
90mm Square Cup Venus Type Spiral Element

Item Code : N-135

Flange/Cup Details : 90mm X 90mm Square Cup

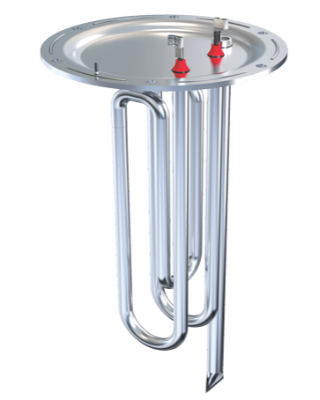

116mm Round Cup Venus Type 6 Hole Double Bend Elements 10 Ltr.

Item Code : N-136

Flange/Cup Details : 116 MM Round Cup 6 Hole

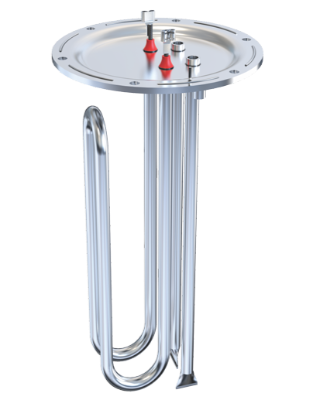

116mm Round Cup Venus Type 6 Hole Double Bend Elements 15 Ltr.

Item Code : N-137

Flange/Cup Details : 116 MM Round Cup 6 Hole
132mm Round Cup 6 Hole 10 Ltr. / 15 Ltr.

Item Code : N-138=N-139

Flange/Cup Details : Round Cup Dia 132mm

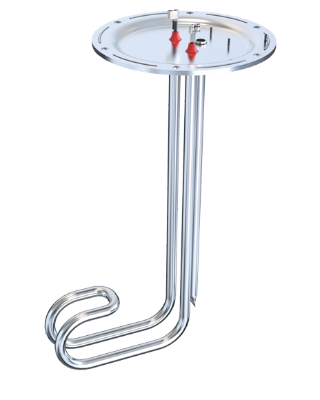

132mm Round Cup 6 Hole Horizontal Element

Item Code : N-140

Flange/Cup Details : 132 MM Round Cup 6 Hole
132mm Round Cup 6 Hole Midget Element with 1 TSP 11mm 6”

Item Code : N-141

Flange/Cup Details : 132 MM Round Cup 6 Hole
163mm Round Cup Spiral Element

Item Code : N-142

Flange/Cup Details : 163 MM Round Cup 6 Hole
3 Bend Element with Nipple Nice Thread

Item Code : N-143

Flange/Cup Details : Nipple Dia 20mm
Square Cup Wave Bend Element

Item Code : N-131

Flange/Cup Details : 90mm X 90mm Square Cup
No of TSP and Dia(mm) : 1 TSP 8mm
TSP Length : 7"/178 mm
Code Depth Rating
N-131 9.5"/240mm 2KW 230V 50 Hz AC
Venus Type Element

Item Code : N-132

Flange/Cup Details : 90mm X 90mm Square Cup
No of TSP and Dia(mm) : 2 TSP 8mm + 8mm
TSP Length : 8"/203 mm
Code Depth Rating
N-132 8"/203mm 2KW 230V 50 Hz AC
Venus Type Element

Item Code : N-133

Flange/Cup Details : 90mm X 90mm Square Cup
Code Depth Rating
N-133 8"/203mm 2KW 230V 50 Hz AC
Venus Type Element

Item Code : N-134

Flange/Cup Details : 90mm X 90mm Square Cup
No of TSP and Dia(mm) : 1 TSP 8mm
TSP Length : 8"/203 mm
Code Depth Rating
N-134 8.5"/216mm 2KW 230V 50 Hz AC
90mm Square Cup Venus Type Spiral Element

Item Code : N-135

Flange/Cup Details : 90mm X 90mm Square Cup
No of TSP and Dia(mm) : 2 TSP (8mm + 8mm)
TSP Length : 7"/178 mm
Code Depth Rating
N-135 5.5"/140mm 2KW 230V 50 Hz AC
116mm Round Cup Venus Type 6 Hole Double Bend Elements 10 Ltr.

Item Code : N-136

Flange/Cup Details : 116 MM Round Cup 6 Hole
No of TSP and Dia(mm) : 1 TSP 11mm
TSP Length : 10"/255 mm
Code Depth Rating
N-136 8"/203 mm 2KW 230V 50 Hz AC
116mm Round Cup Venus Type 6 Hole Double Bend Elements 15 Ltr.

Item Code : N-137

Flange/Cup Details : 116 MM Round Cup 6 Hole
No of TSP and Dia(mm) : 1 TSP 11mm
TSP Length : 10"/255 mm
Code Depth Rating
N-137 8"/203 mm 2KW 230V 50 Hz AC
132mm Round Cup 6 Hole 10 Ltr. / 15 Ltr

Item Code : N-138 / 139

Flange/Cup Details : Round Cup Dia 132mm
No of TSP and Dia(mm) : 2 TSP (8mm+8mm)
TSP Length : 9"/228 mm
Code Depth Rating
N-138 9"/228 mm 2KW 230V 50 Hz AC
N-139 9"/228 mm 2000W 230V 50 Hz AC
132mm Round Cup 6 Hole Horizontal Element

Item Code : N-140

Flange/Cup Details : 132 MM Round Cup 6 Hole
No of TSP and Dia(mm) : 1 TSP 8mm
TSP Length : 11"/280 mm
Code Depth Rating
N-140 12"/305 mm 2KW 230V 50 Hz AC
132mm Round Cup 6 Hole Midget Element with 1 TSP 11mm 6”

Item Code : N-141

Flange/Cup Details : 132 MM Round Cup 6 Hole
No of TSP and Dia(mm) : 1 TSP 8mm
TSP Length : 6"/152 mm
Code Depth Rating
N-141 5.5"/140 mm 2KW 230V 50 Hz AC
163mm Round Cup Spiral Element

Item Code : N-142

Flange/Cup Details : 132 MM Round Cup 6 Hole
No of TSP and Dia(mm) : 2 TSP (8mm + 8mm)
TSP Length : 8"/203 mm
Code Depth Rating
N-142 5.5"/140 mm 2KW 230V 50 Hz AC
3 Bend Element with Nipple Nice Thread

Item Code : N-143

Flange/Cup Details : Nipple Dia 20mm
Code Depth Rating
N-143 6"/153mm 3KW 230V 50 Hz AC
